T47A-IDS24 BOTTOM BRACKET

High quality BB for T47A asymmetrical BB shell.  Sugino OX series and Shimano hollowtechⅡcranks (DURA-ACE, ULTEGRA, 105) work perfectly with the BB.

Frame standard : T47A　*FACTOR, Cervélo & FELT use the standard.
BB shell width : 77mm (76.75～77.25mm)

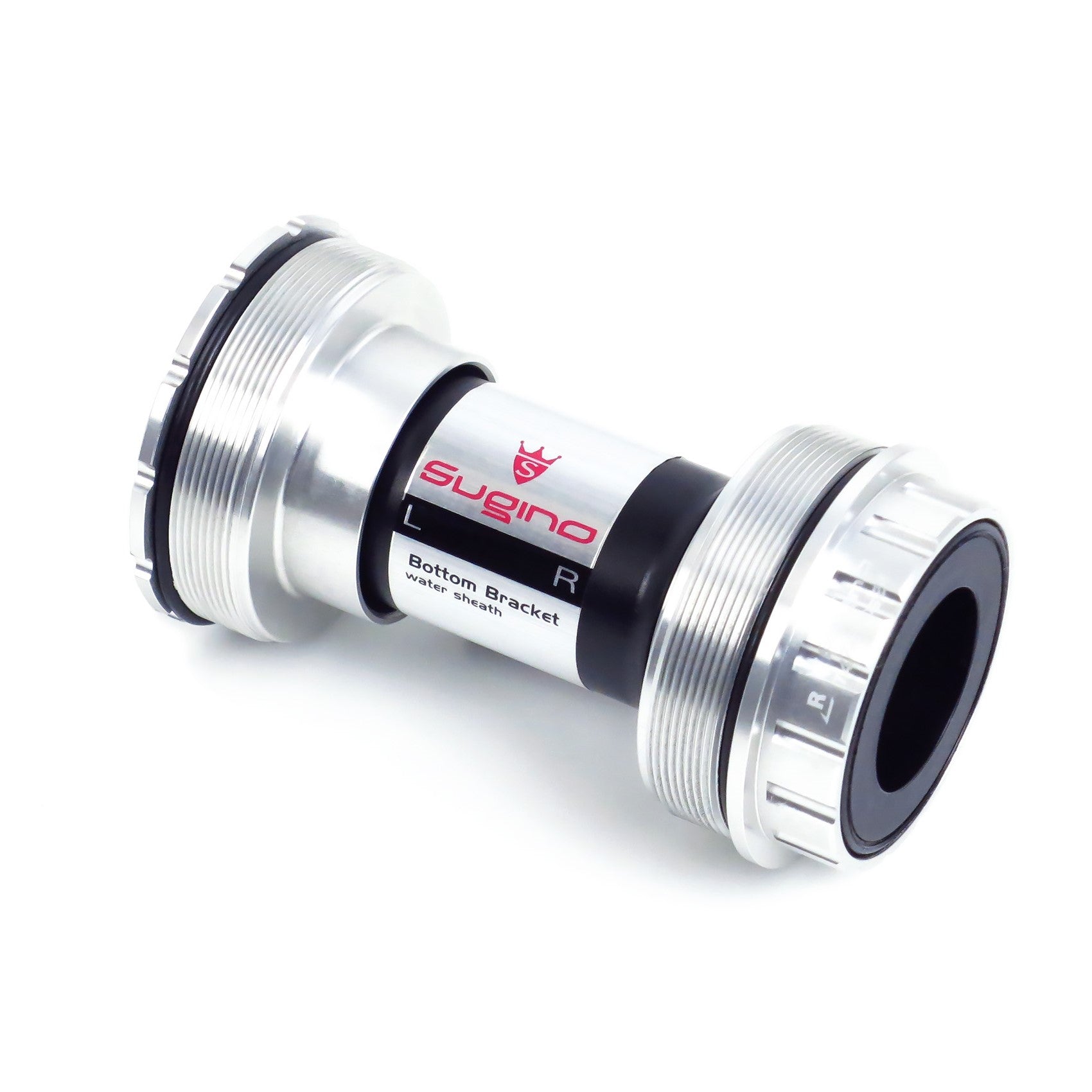

Bearing : Ceramic (Black) / Steel (Silver)
*T47 comes in a number of variants and uses different BB configurations. Before installation, check the BB shell width of your T47 frame.

Advanced sealing mechanism including special lip seal gives long term durability in water and dust, ensures longer service life of high precision bearing. So, service and maintenance of the bearing are not required.

The gasket ring placed under either side of the cup flange provides secure fitting and keep water out of frame. No thread locking agent is required.
*Replacement Gasket-ring is available.”BB-Gasket-Ring Set"

*Dedicated tool to ensure workability of installation and removal (sold separately)."TL-PWS BB Wrench Set"

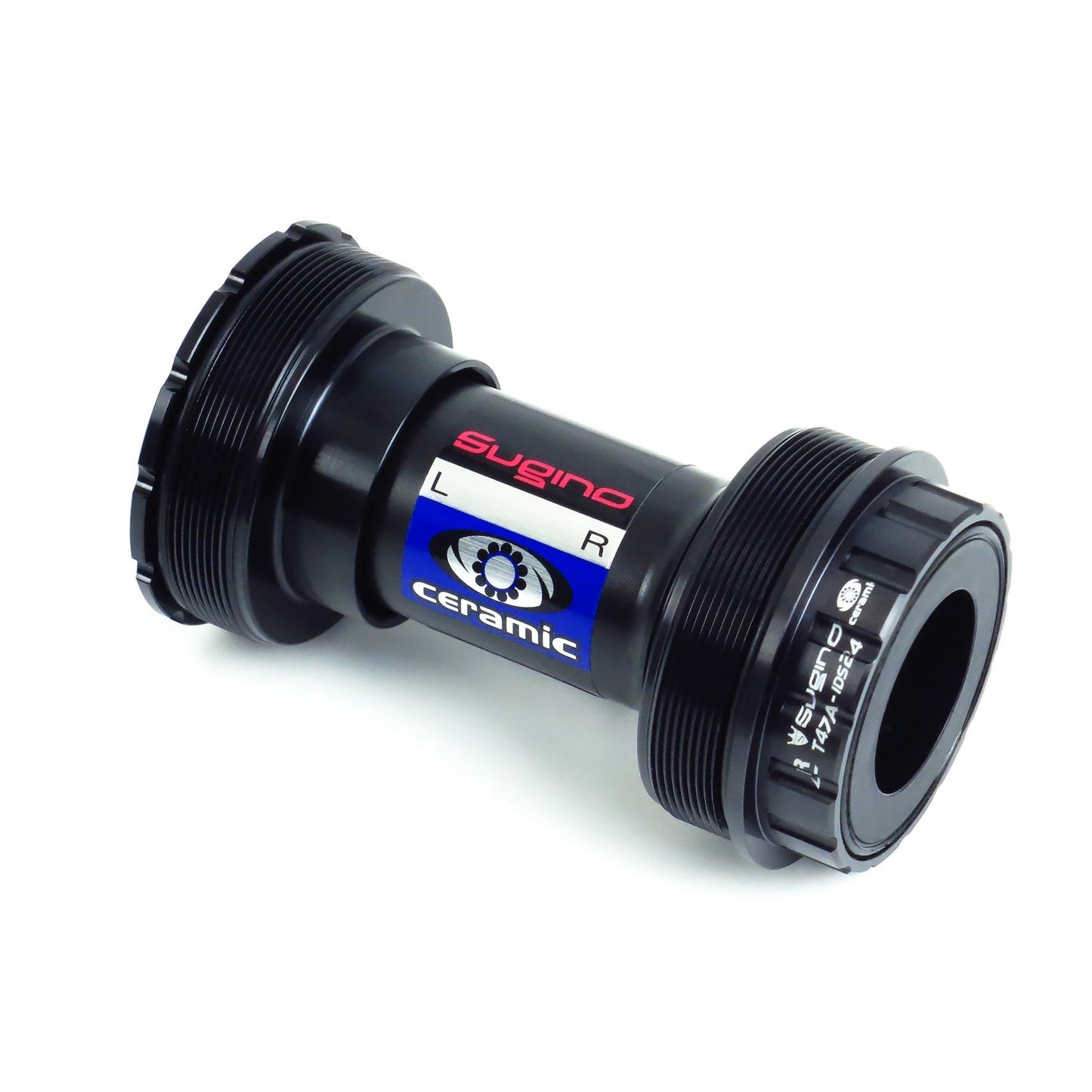

"SUPER CERAMIC"
Made-in-Japan, highest grade, high precision ceramic bearings are used to ensure super smooth and long-lasting rotation. Cyclists need to adjust power and cadence depending on terrains, so the ceramic bearing is most effective as less energy is required to turn the crank. It offers remarkable performance gain under high load conditions such as competitions.



Crank compatibility :
● Sugino OX Series (IDS24)
● Shimano hollowtechⅡ(DURA-ACE, ULTEGRA, 105)

Download the Press Release; T47A-IDS24
