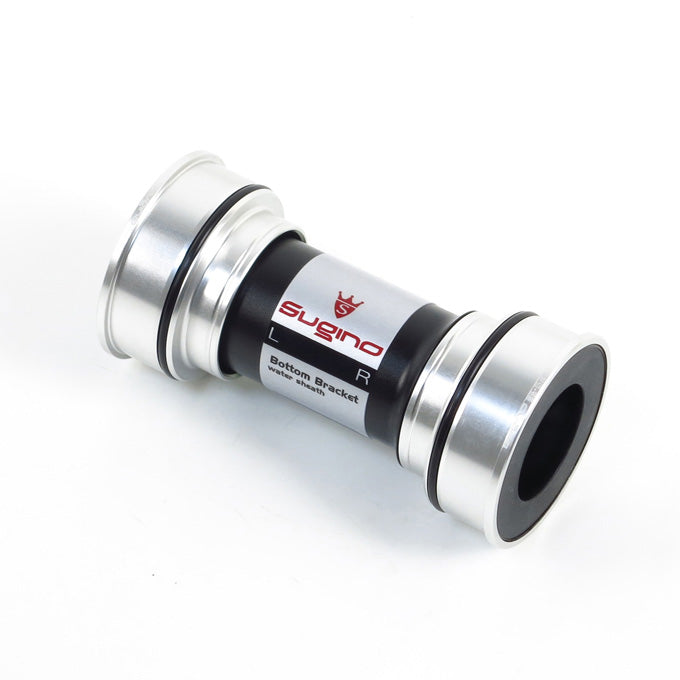

SHPF(BB86)

Fit for BB86 frames for OX series and Shimano 24mm spindle cranks (Hollowtech II), press-fit type

Frame standard : PF BB86
BB shell width : 86.5mm
BB shell diameter : Ф41mm
Bearing : Steel

The BB series features advanced seal design to protect bearing against water and dust and offers excellent rotation performance for smoother pedal strokes. Service and maintenance of the bearing are not required.

Left and right cups separated, joining the cups with a plastic sleeve, optimized design for light weighting.

A slim sleeve allows Di2 wire to go around it.

BB is removed using a hammer type tool (such as Park Tool BBT-90).

What type of bottom bracket do I need for my bike? Please check ;
