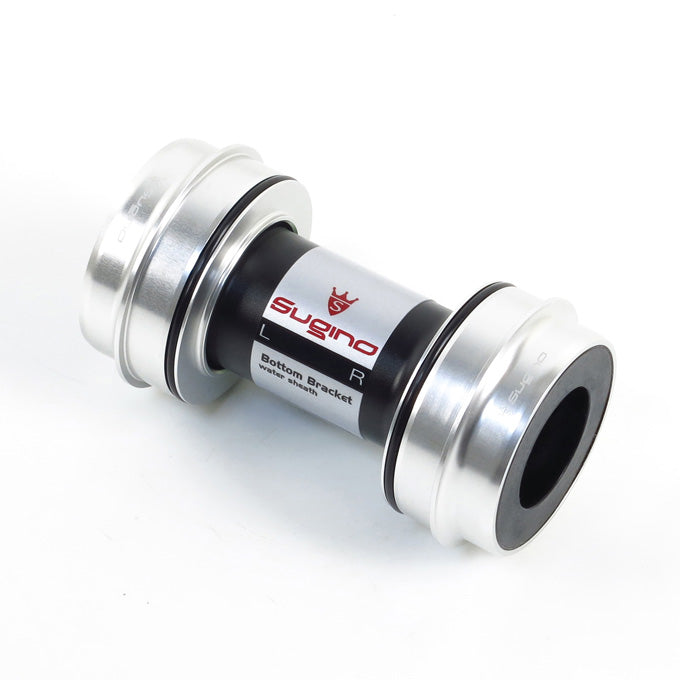

PF30-IDS24 CONVERTER

Press-fit type BB converter to install a 24mm axle (OX series and Shimano Hollowtech II) to PF30 frames.

Frame standard : PF30
BB shell width : 68mm
BB shell diameter : Ф46mm
Bearing : Steel

The BB series features advanced seal design to protect bearing against water and dust and offers excellent rotation performance for smoother pedal strokes. Service and maintenance of the bearing are not required.

Left and right cups separated, joining the cups with a plastic sleeve, optimized design for light weighting.

A slim sleeve allows Di2 wire to go around it.

BB is removed using a hammer type tool (such as Park Tool BBT-90)

What type of bottom bracket do I need for my bike? Please check ;
