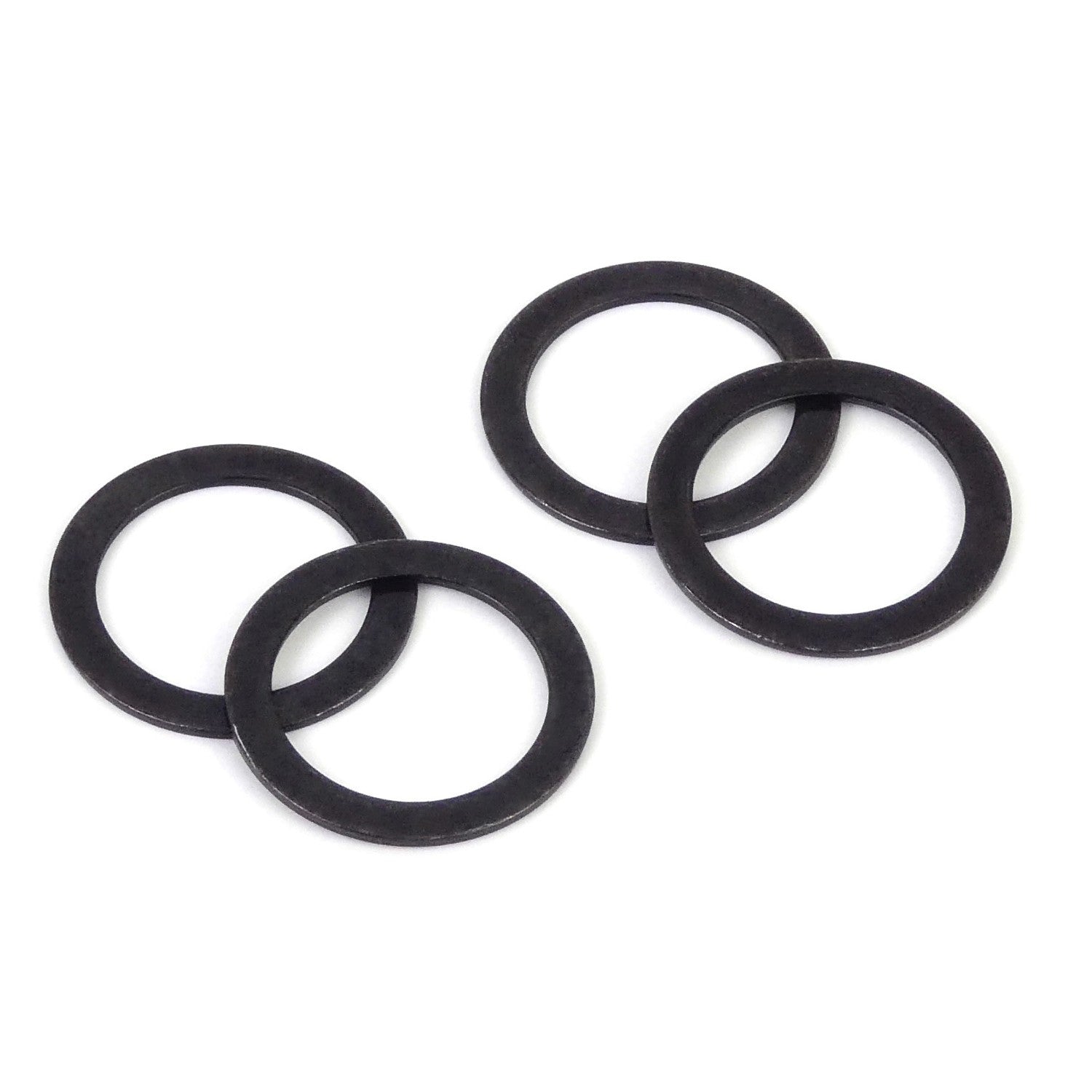

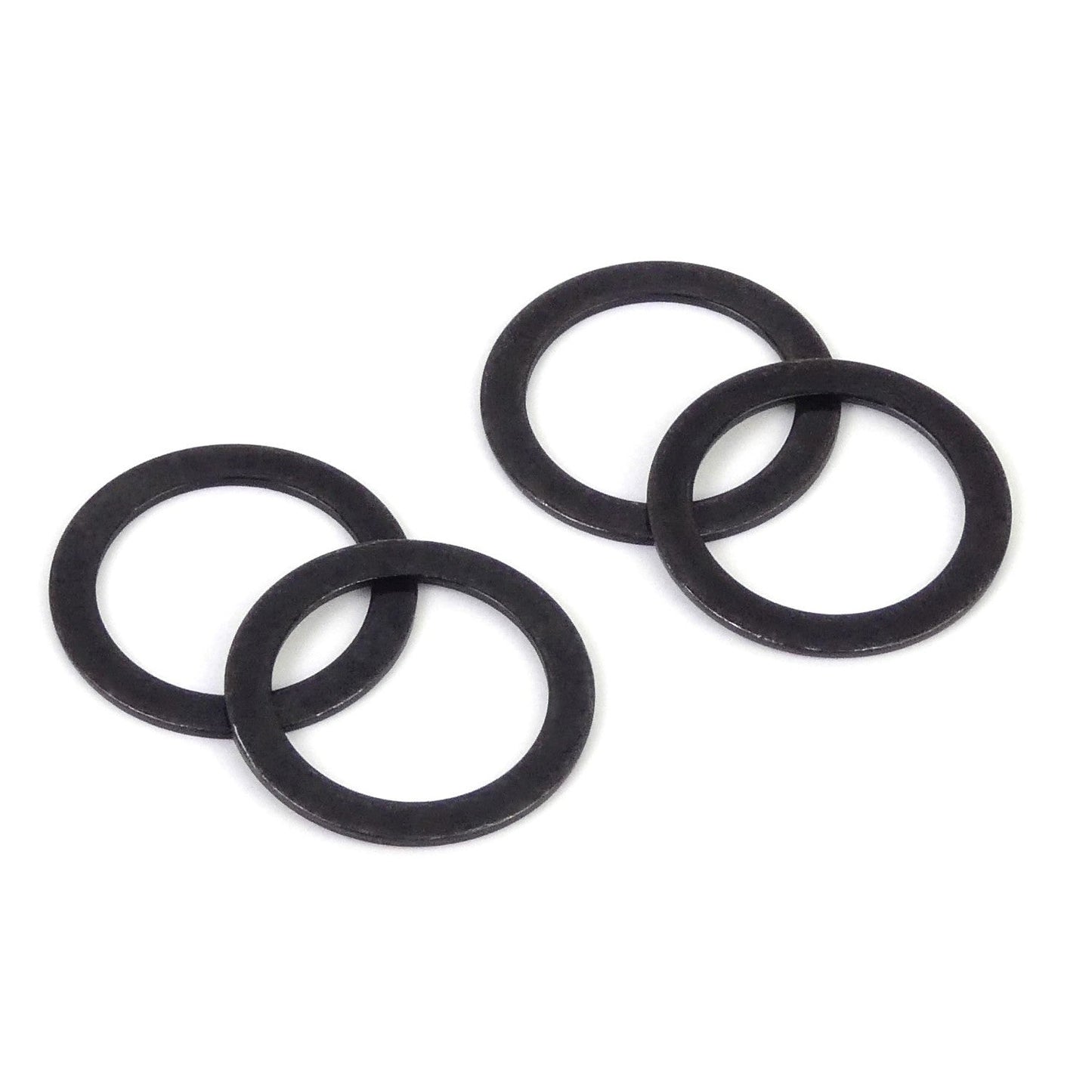

Pedal Spacer

Hight strength Pedal Spacers to protect your crank from being damaged by the pedal (Usage 1) or/and to adjust the pedal's lateral position when the pedal threads protrude from the crank (Usage 2).

Size : ∅14.7 x ∅19.75 x 0.8mm
Material : Steel
Set includes 4 spacers.

How To Install
①Remove the pedal from the crank.
②Place a spacer between the pedal threads and crank and install the pedal.
For torque specification, check manufacturer's specific instructions for your pedals.

For Usage 1
③Repeat the same procedure for the other side.

For Usage 2
③Make sure that the amount of protrusion is less than 0.5mm.
If the amount is still greater than 0.5mm, add another spacer.

④Use the same number of spacers on the other side.
