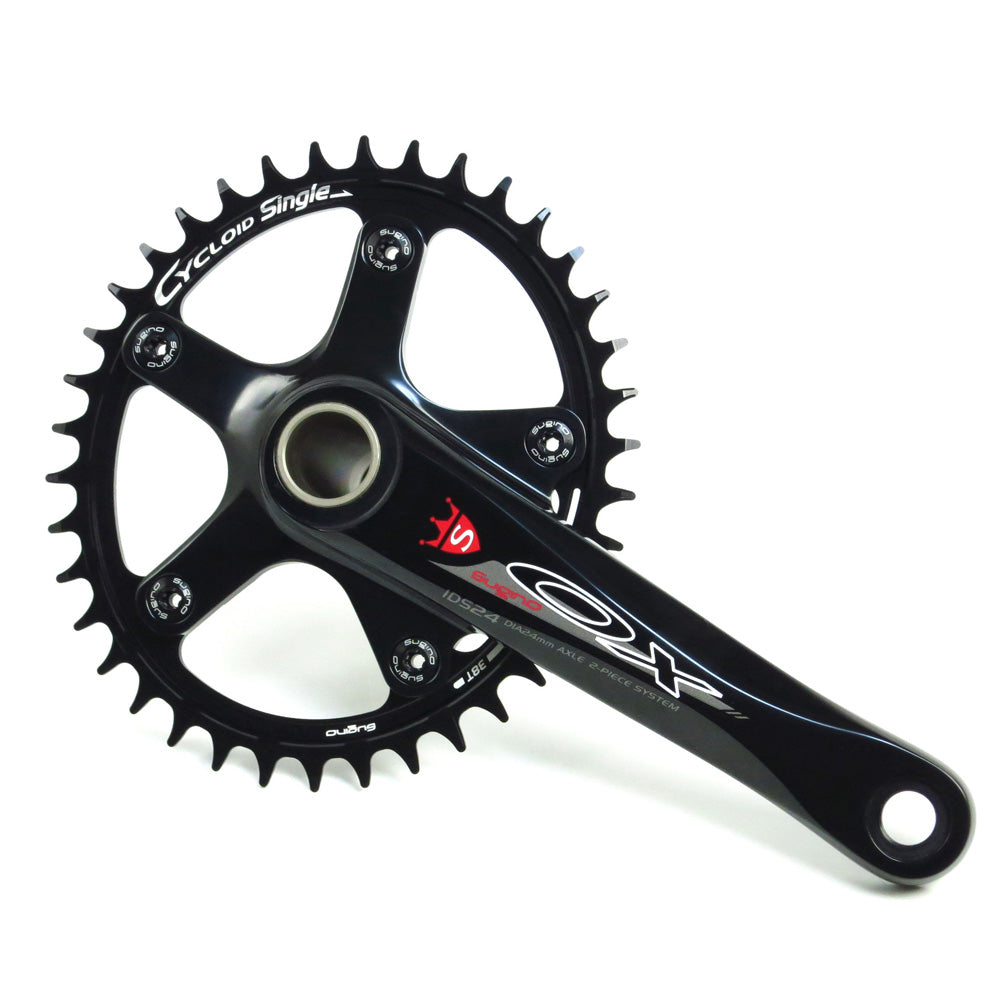

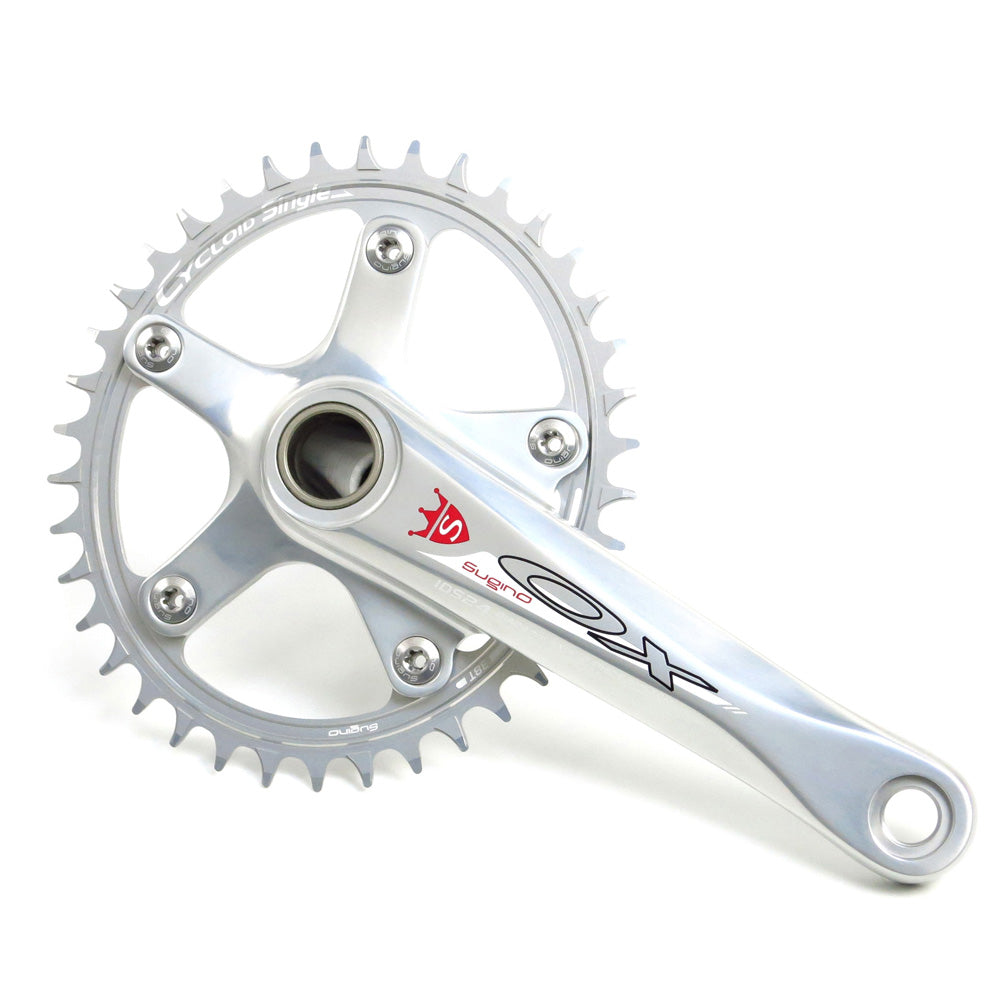

OX2-SWN W/MB608(BSA)

Front Single Chainwheel Set featuring Cycloid chainring (CY5-SWN) with wide-narrow tooth profile for wide range cassette drivetrains.

P.C.D. : 110mm
Axle : IDS24

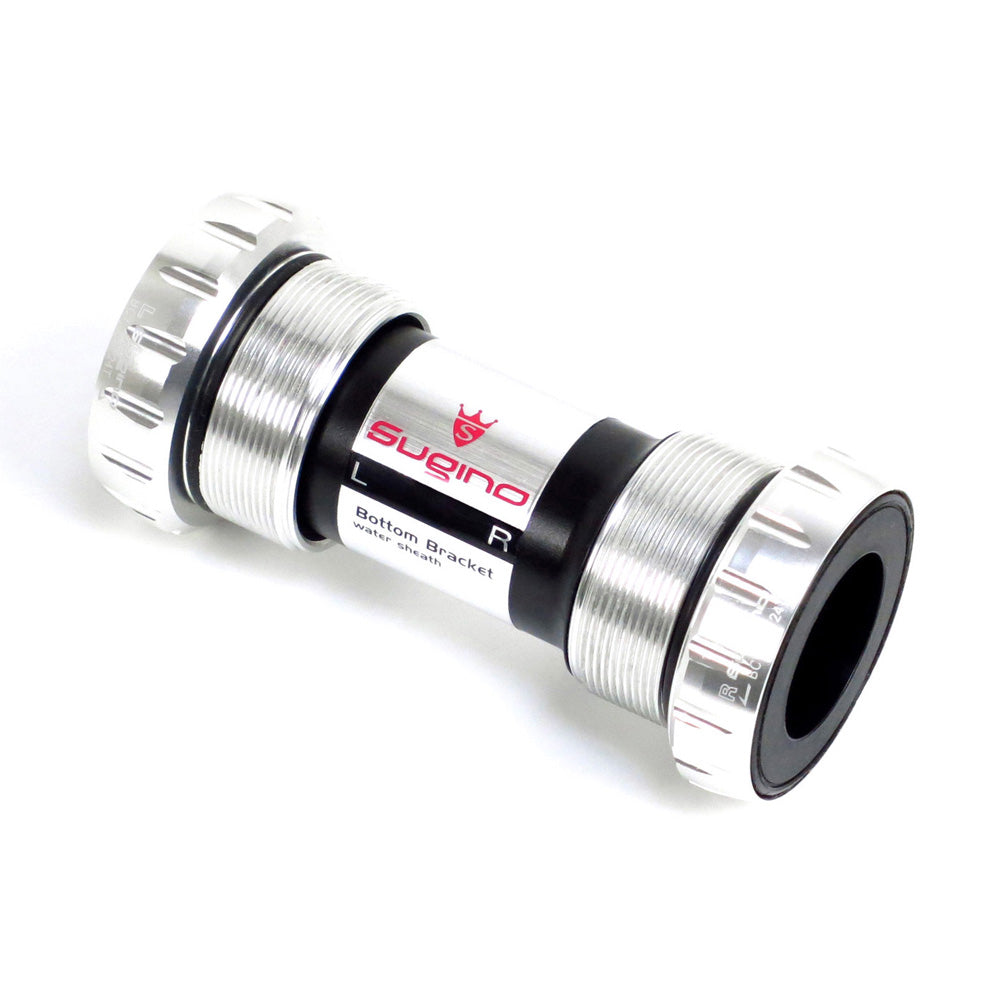

B.B. : MB608 (BSA) Steel (included)
Compatibility : SHIMANO 11speed/10speed
Q-factor : 145mm
Crank material : Hard forged aluminum alloy

Crank length : 160, 165, 167.5, 170, 172.5, 175
Chainring : 38T, 40T (CY5-SWN) *CNC aluminum alloy

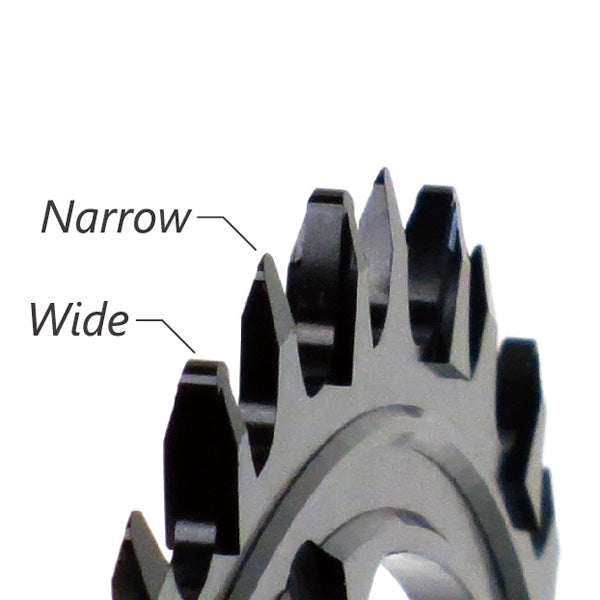

Wide-Narrow Chainring
Alternating narrow and wide teeth makes the chain more secure on the ring and eliminates chain drop, optimized design for front-single chainring.

“Autofocus mechanism” assists your pedal stroke to remain smooth and efficient at all time so that your pedaling technique can be dramatically improved. Thus, CYCLOIDⅡis the innovative high performance chainring, totally different from any other ovals

"What is Autofocus mechanism?"
When the force is applied to the pedal, the chain moves outward. You feel the ring increases the diameter as the chain runs higher on the ring. As amount of moving will fluctuate by the force applied, it maximizes the benefits of non-circular ring, and assists your pedal stroke to remain efficient.
*there is no need of pedal stroke analysis to identify peak point or adjustment of mounting position.

Special features :
"CYCLOD Single (CY5-SWN)", Ultra-high performance, Wide and Narrow tooth profile, Front Single Chainring
"Super low Q-Factor 145mm", perfectly symmetric ensures smoother and efficient pedaling.
"Large ankle clearance" keeps the shoe from rubbing the crank.

*Special fixtures available (sold separately).
STI Stopper - Used to hold STI lever (dual control lever) for FD in place by putting it on the cable.
