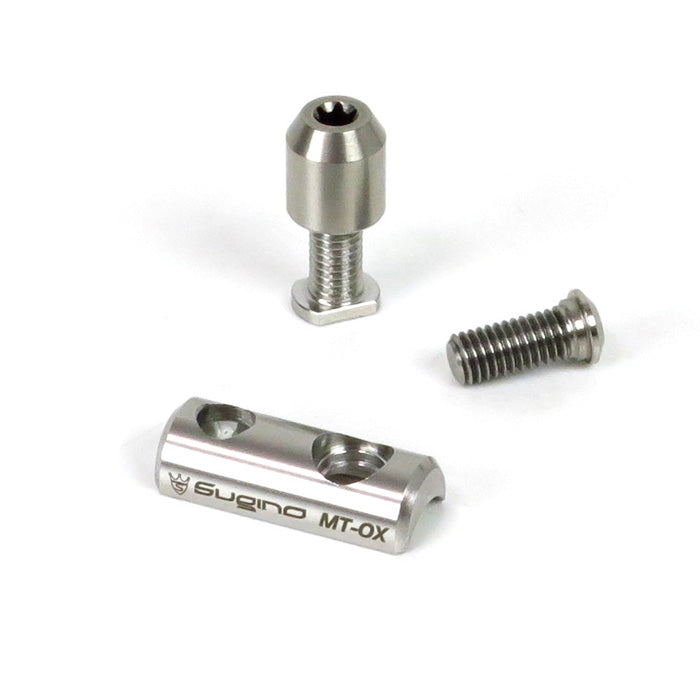

MT-OX

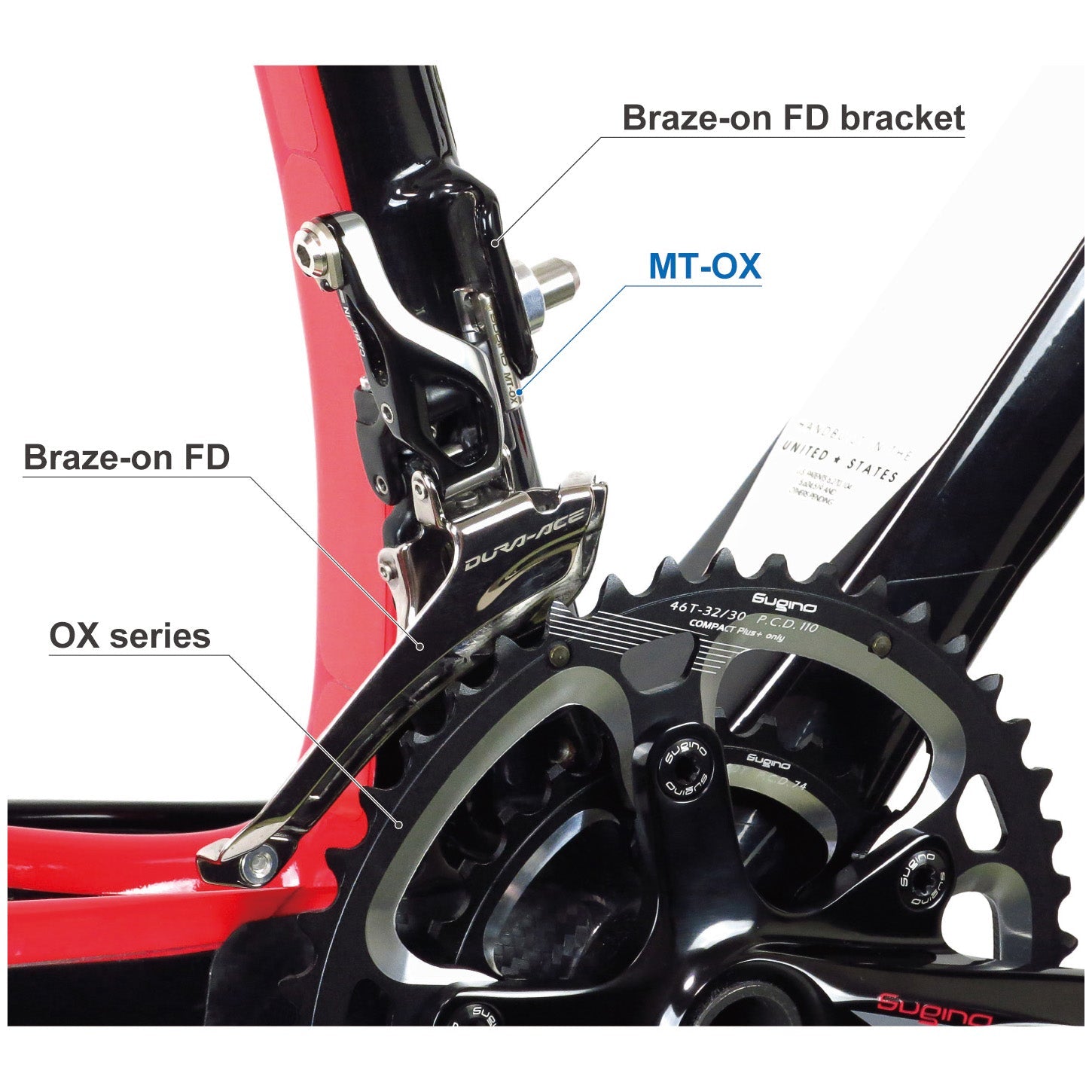

ADJUSTABLE FD MOUNT FOR OX SERIES to mount braze-on front derailleur low enough to accommodate OX "Compact Plus+" chainrings as small as 44T.

The FD bracket doesn't have a long enough adjustment slot to get the FD into the recommended height above the chainring, as the adjustable range is usually between 50T-54T. In order to get smooth, accurate shifting, it's important to have your front derailleur properly positioned.

For SHIMANO 11 speed front derailleur

Material : Stainless steel
*Fully CNC machined, etched with the Sugino name

Tool required : Torx (T20)

*Before use, please check ;
Front Derailleur Position for installing chainwheel
