CRANK SPACER Φ24

Crank Spacer set for SG75DD2 & OX2 Series (IDS24) to fine adjust Chainline and remove side-to-side play.
When left crank is too close to chainstay, adjust clearance by using the spacer(s) in between crank and BB.

Size : ∅24 x ∅29 x 0.5mm

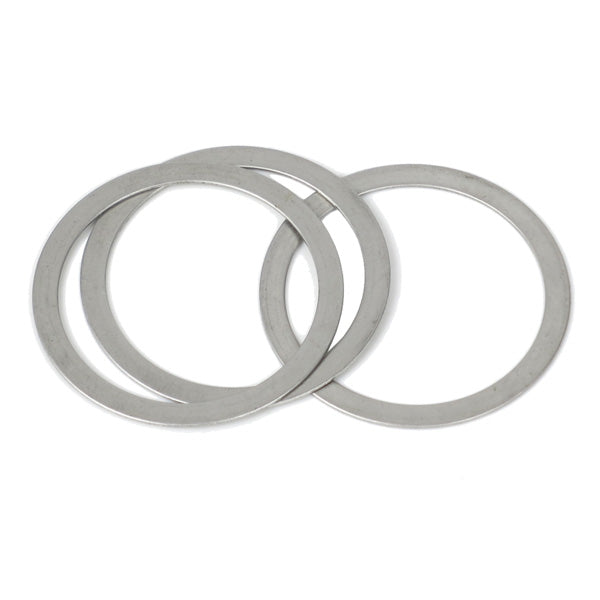

Set includes 3 spacers.

How to adjust Chainline
Install spacer(s) between right crank and BB.
*Add spacer(s) on left side as necessary to adjust Q-factor, but it won’t change the chainline.

How to remove side-to-side play
If there is side-to-side play in the crank, install a spacer between left crank and BB.
*If one spacer is not enough to achieve effect, add another spacer(s) on the right side.

Note:
*There should not be more than 3 spacers installed in total.
*After installing spacer(s), make sure axle engages the left crank fully.
*If the engagement is insufficient, the crank will become loose and may cause serious accidents such as a left crank falling off.


*Place spacer(s) in between crank and bearing.
