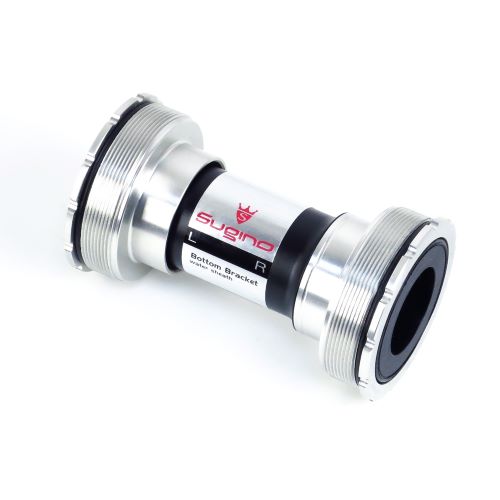

T47in-IDS24 BOTTOM BRACKET

High quality BB set fully compatible with T47 internal type BB shell of 85.5～86.5mm frames such as New Madone, Emonda & Domane. Sugino OX series and Shimano hollowtechⅡcranks (DURA-ACE, ULTEGRA, 105) work perfectly with the BB.

Frame standard : T47 Internal
BB shell width : 85.5～86.5mm
(T47 Internal standard is used on TREK, COLNAGO, LOOK, etc.)
Bearing : Ceramic (Black) / Steel (Silver)

Advanced sealing mechanism including special lip seal gives long term durability in water and dust, ensures longer service life of high precision bearing. So, service and maintenance of the bearing are not required.

Easy installation and removal

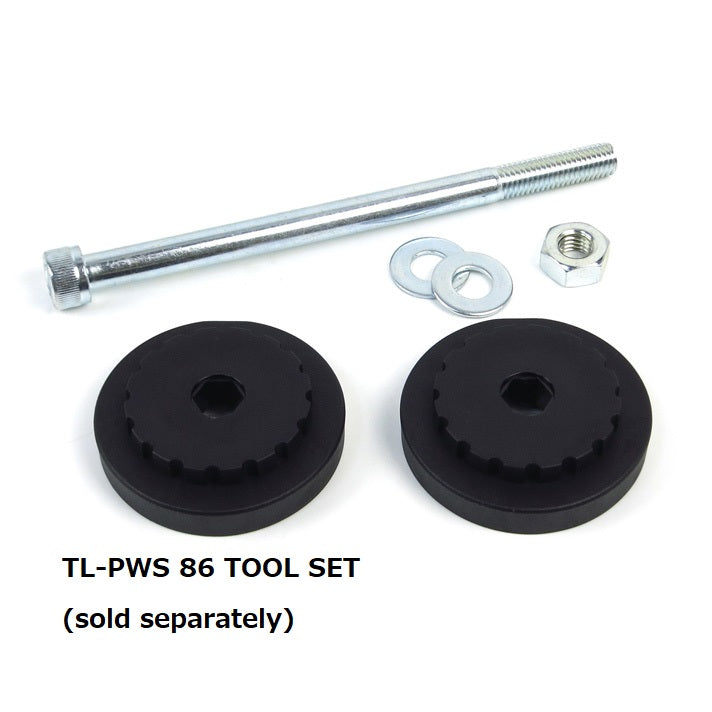

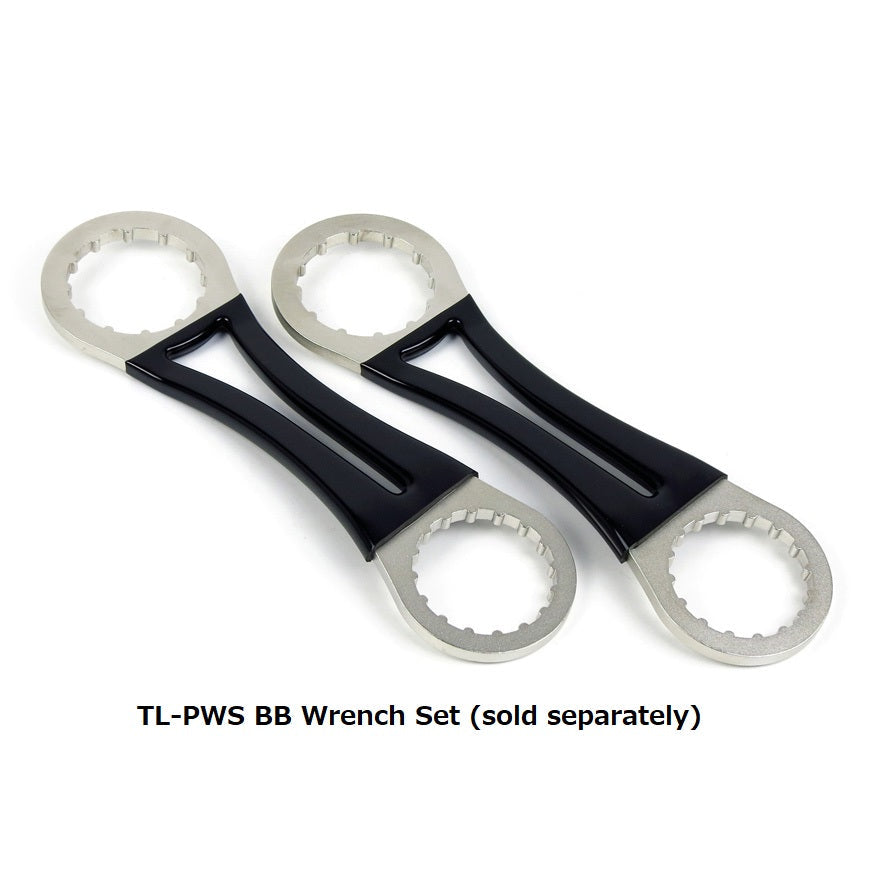

Due to thin flanges on T47 cups, a wrench may slip off and damage the bottom bracket and frame. The special tool "TL-PWS BB Wrench Set" and "TL-PWS86 Tool Set which matches the cup perfectly, makes installation and removal easy, and facilitates the maintenance of the internal cable.

The gasket ring placed under either side of the cup flange provides secure fitting and keep water out of frame. No thread locking agent is required.
*Replacement Gasket-ring is available. ”BB-Gasket-Ring Set"

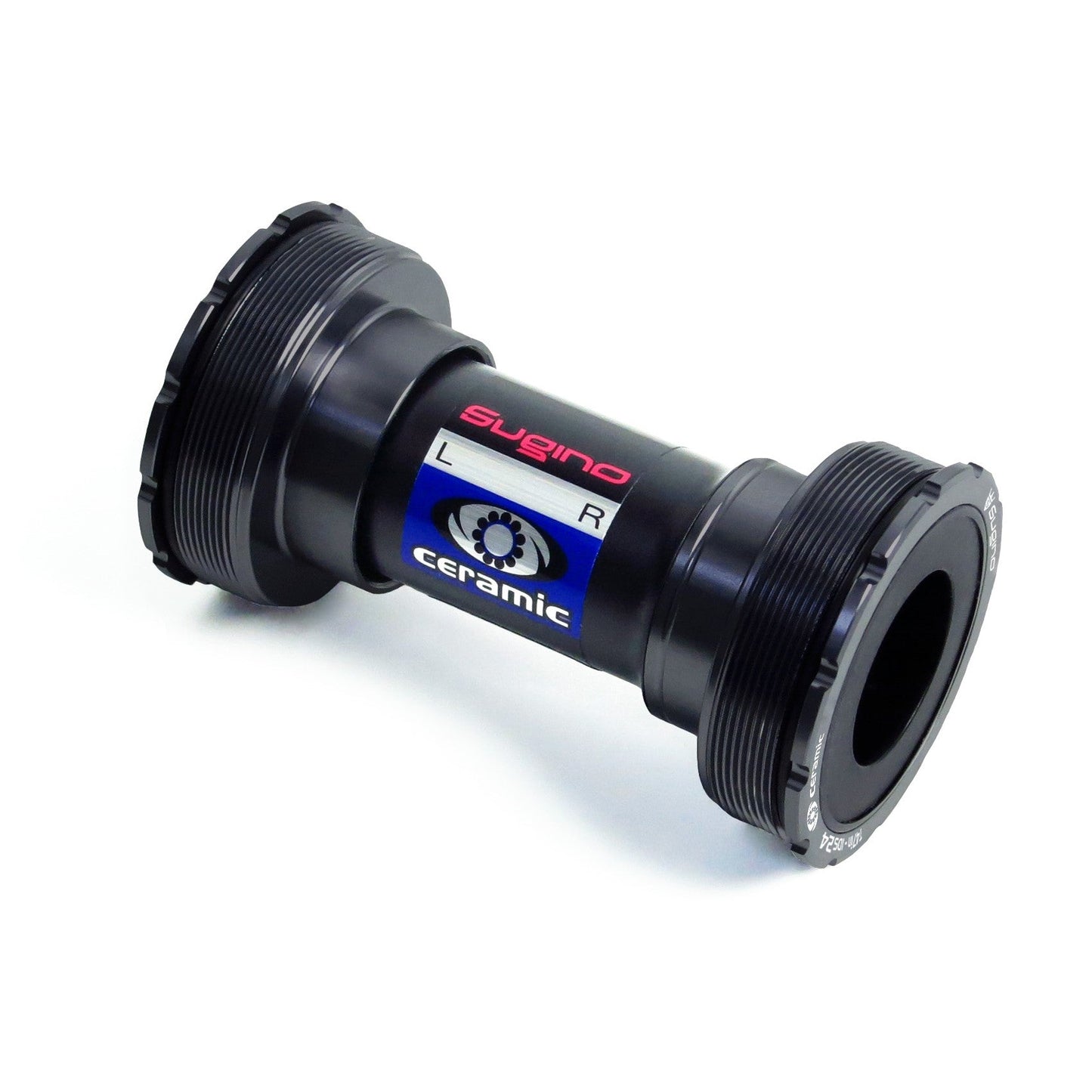

"SUPER CERAMIC"
Made-in-Japan, highest grade, high precision ceramic bearings are used to ensure super smooth and long-lasting rotation. Cyclists need to adjust power and cadence depending on terrains, so the ceramic bearing is most effective as less energy is required to turn the crank. It offers remarkable performance gain under high load conditions such as competitions.



Crank compatibility :
● Sugino OX Series (IDS24)
● Shimano hollowtechⅡ(DURA-ACE, ULTEGRA, 105)
