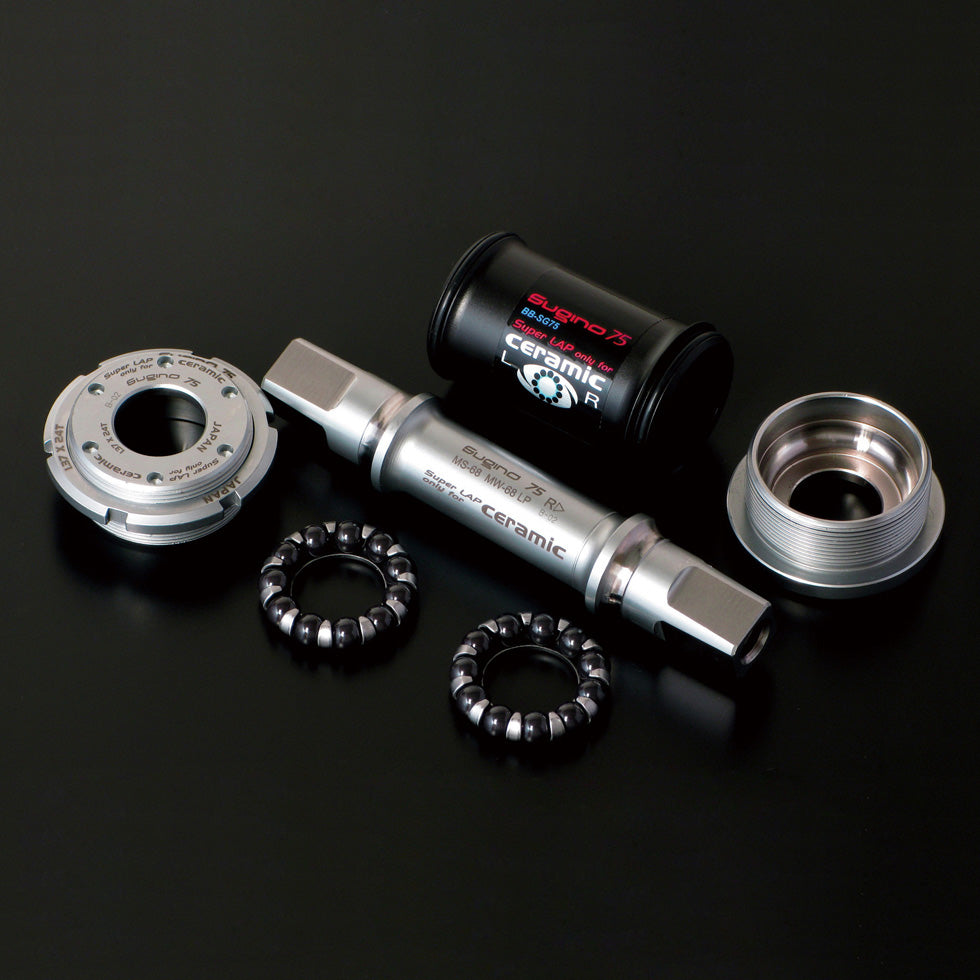

BB-SG75 SUPER CERAMIC

Traditional cup & cone style bottom bracket BB-SG75 Super Ceramic, with loose ceramic ball retainer bearings and special polishing to the races on both spindle and ball cups, by the synergistic effect of them, extremely smooth rotation is realized, used and trusted by many of the Olympic athletes.
The cup & cone style BB are more adjustable (can get a perfect smoothness) and more serviceable, so it can perform its required functions for a long time.

Bearing : Ceramic balls

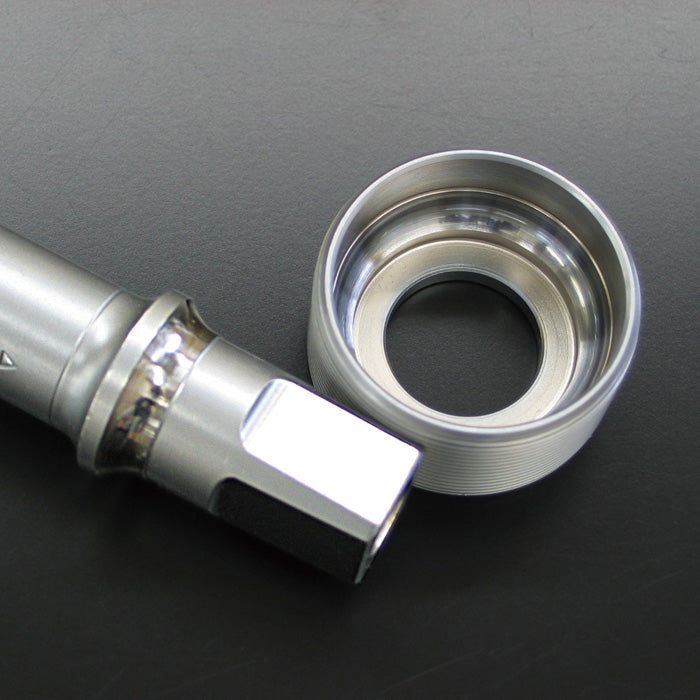

Ball Race : Super LAP
Axle : "SG75 taper"
Cup Thread : BC1.37x24T
Shell Width : 68mm
Either of Sugino axle bolts of 18mm below the head should be used ; ❶one provided with BB-SG75, ❷14BK or ❸CPB

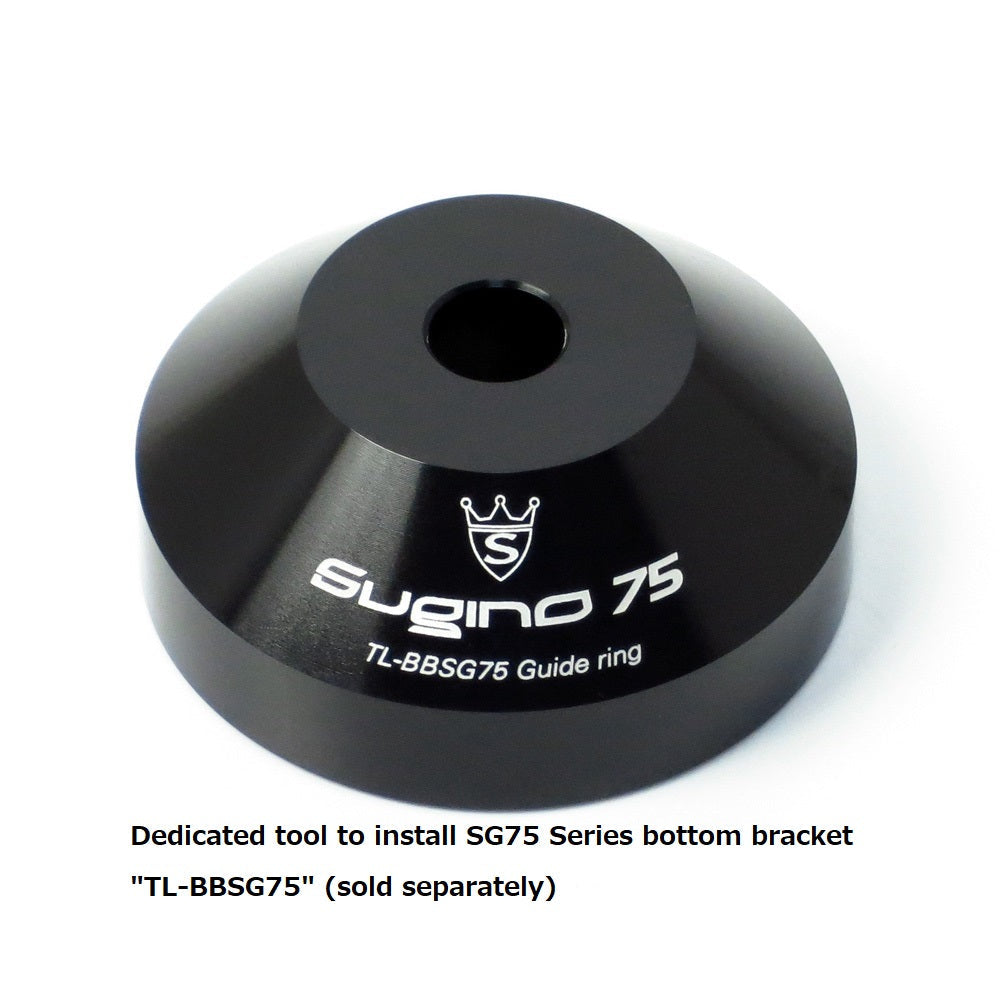

Dedicated tool to install SG75 Series bottom bracket is available.
”TL-BBSG75 GUIDE RING"

"SUPER CERAMIC"
Made-in-Japan, highest grade, high precision ceramic balls are used to ensure super smooth and long-lasting rotation. Cyclists need to adjust power and cadence depending on terrains, so the ceramic bearing is most effective as less energy is required to turn the crank. It offers remarkable performance gain under high load conditions such as competitions.

As SG75 Series use a proprietary taper called "SG75 taper", SG75 crank should only be used on SG75 bottom bracket.
For more detailed information, please check ;

"Important Information on SG75 Taper"
