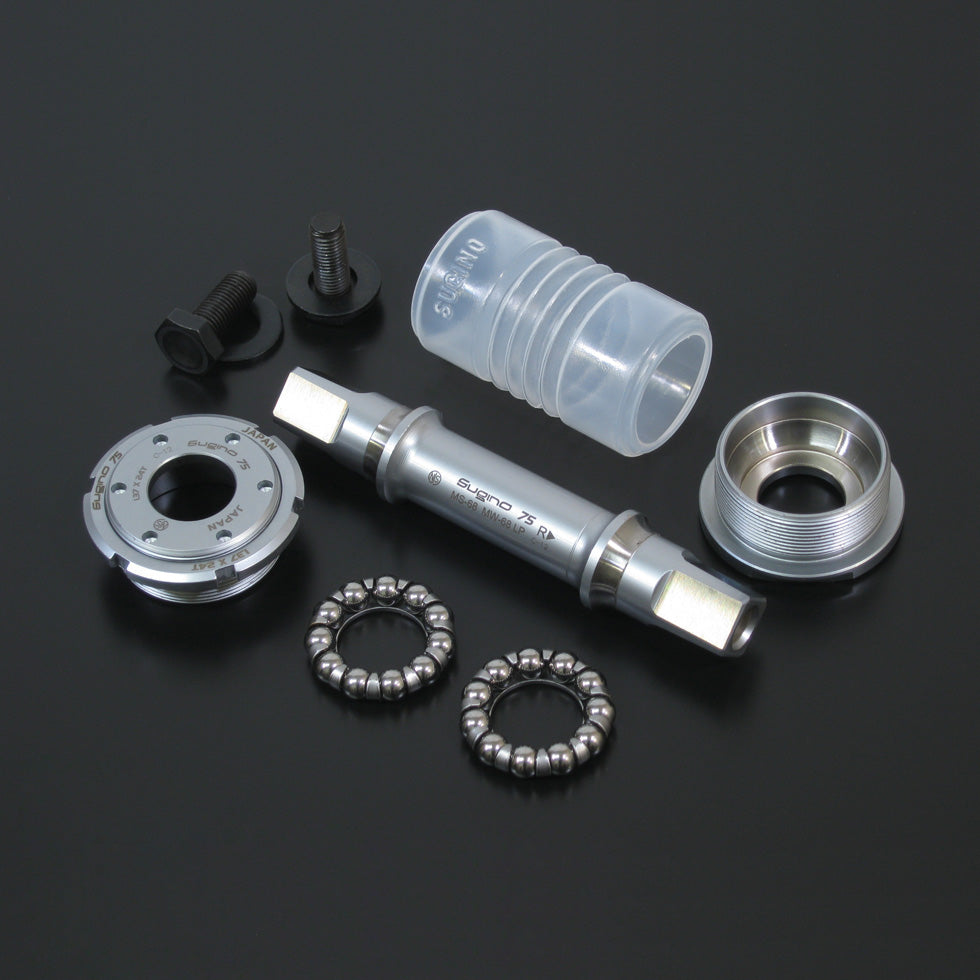

BB-SG75 STANDARD

Traditional cup & cone bottom bracket BB-SG75 Standard, with loose ball retainer bearings, used and trusted by many of the professional riders.
The cup & cone style BB are more adjustable (can get a perfect smoothness) and more serviceable, so it can perform its required functions for a long time.

Bearing : Steel balls
Ball Race : Standard
Axle :"SG75 taper"
Cup Thread : BC1.37x24T
Shell Width : 68mm
Either of Sugino axle bolts of 18mm below the head should be used ; ❶one provided with BB-SG75, ❷14BK or ❸CPB

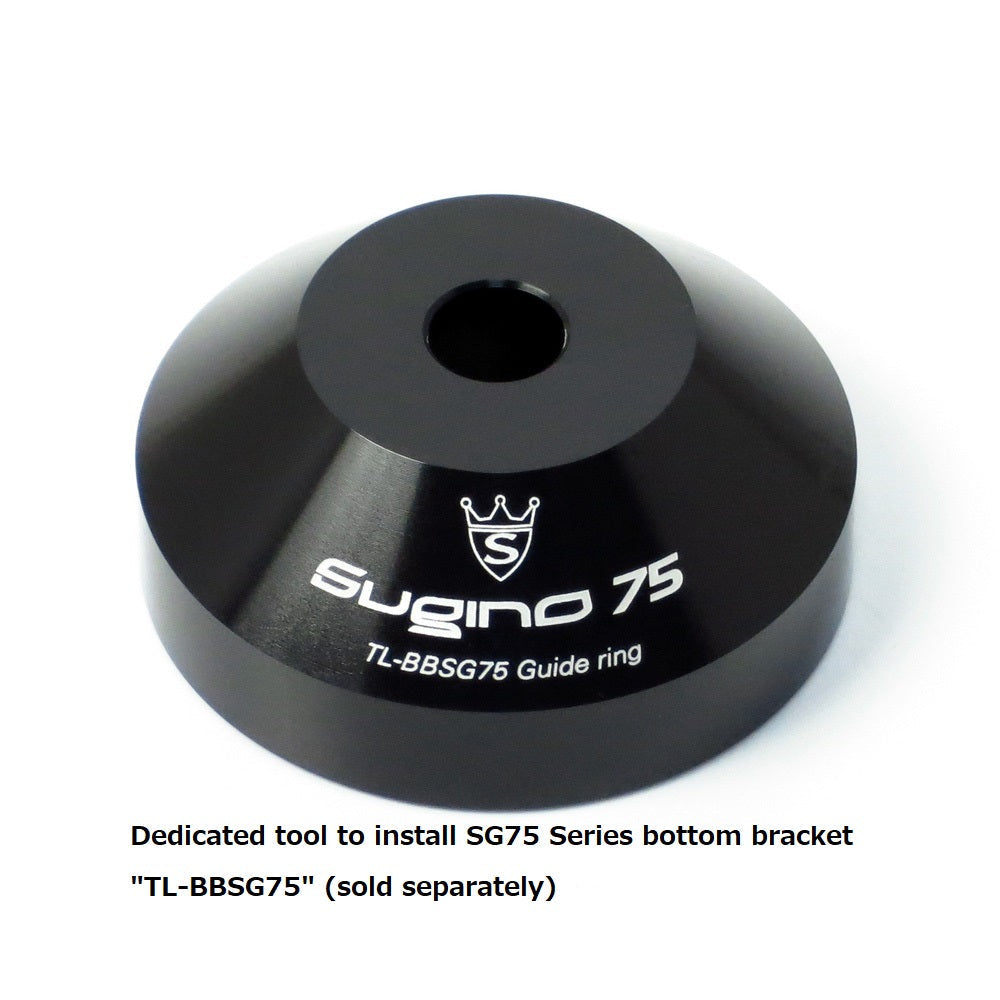

Dedicated tool to install SG75 Series bottom bracket is available.
”TL-BBSG75 GUIDE RING"

As SG75 Series use a proprietary taper called "SG75 taper", SG75 crank should only be used on SG75 bottom bracket.
For more detailed information, please check ;

"Important Information on SG75 Taper"
